Overspeed Governors
LK250 Bidirectional
Small, compact, dynamic and with everything you need.
-(1).png?data=eyJtZWRpYV9pZCI6Mjg0OTQ5LCJieXRlcyI6OTg1MzgsInByb2plY3RfaWQiOjY5LCJoYXNfaW1naXgiOjF9)

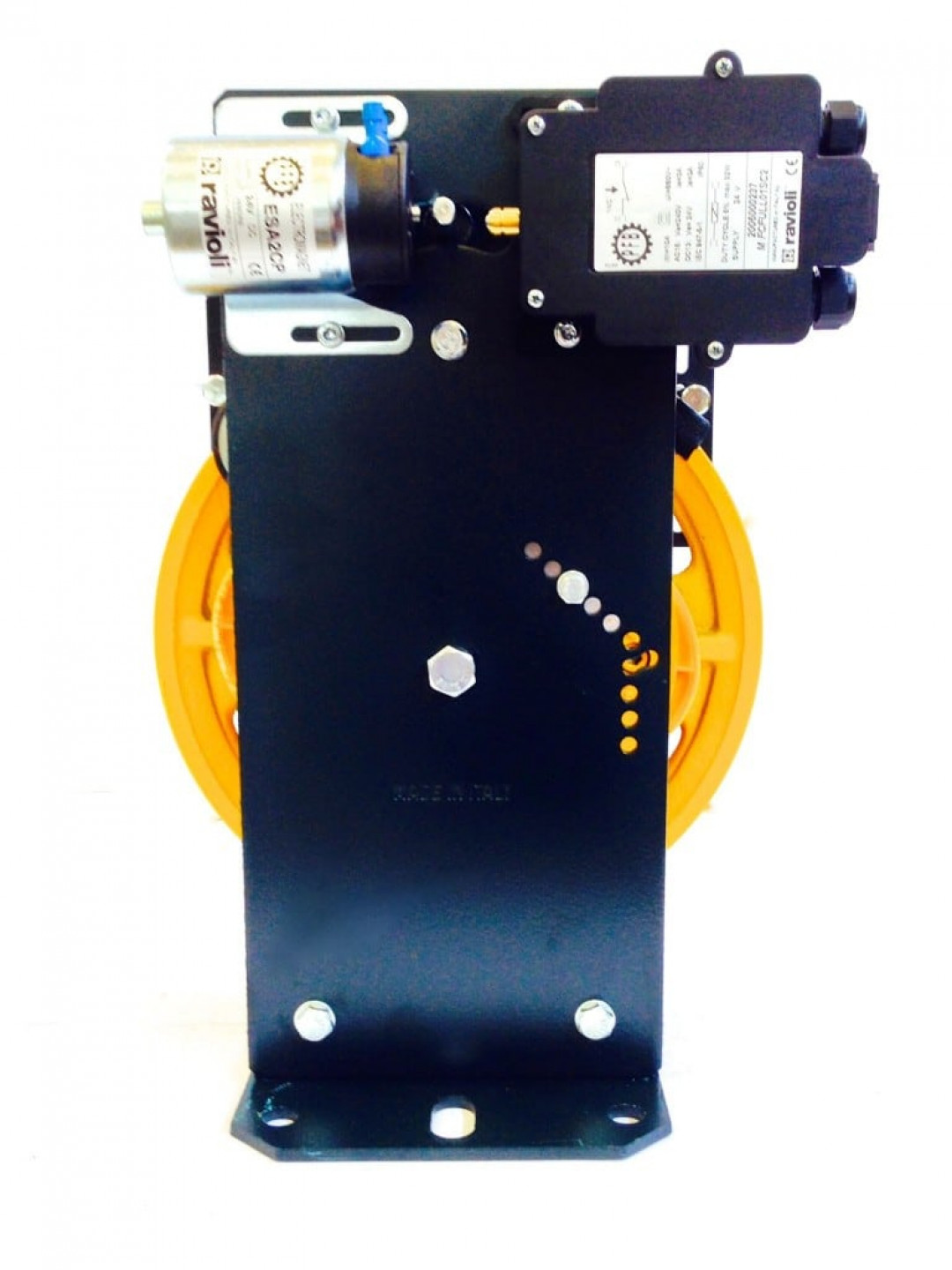

Overspeed governor LK250 Bidirectional
Bidirectional overspeed governor approved by TÜV Germany according to Directive 2014/33/EU and EN81-20/50 standards.
Available with test groove, remote control, encoder, protection, rope safety guard and hang up version, with device for uncontrolled car movement and anti-creeping.
| LK250 Bidirectional | |
|---|---|
| Pulley Type | Pulley Ø 250 mm with hardened groove Bidirectional for rope diameter 6-8 mm |
| Nominal Speed | Up to 1,74 m/s |
| Tripping Speed | From 0,32 m/s up to 2,00 m/s |
| Hardened groove | |
| Certifications | EN81-20/50, 2014/33/EU, Gost TP TC |
| Optional | |
|---|---|
| Test groove | |
| Rope safety guard | |
| Protection cover | |
| Remote control (IP 50) |
|
| Incremental encoder | |
| UCM |
Combinable tension weights
🔽 : down tripping
🔽🔼 : up and down tripping
